AudioLink

Warren's Fast Fur Shader currently supports the following AudioLink features:

• Albedo Hue Shift cycling
• Emission map
• Decals
• Hair movement

Main AudioLink Settings

The main AudioLink settings are located in the "Special -> AudioLink" tab:

Master Settings

Master Enable enables or disabled ALL AudioLink features.

Master Strength affects the strength of ALL AudioLink features.

NOTE: Each AudioLink feature also has its own separate enable, so the Master Enable won't do anything until you enable at least one feature.

Dynamic Layers

Dynamic layers apply AudioLink effects as moving layers, starting at the hair's roots and moving outwards towards the tips:

A close-up of my ear, showing the dynamic layers in action.

Dynamic Layers Strength controls the visibility of the dynamic layers

Dynamic Layers Speed controls how fast the effect moves from the roots towards the tips

Dynamic Layers Lateral applies a parallax effect when viewing the fur at an angle, causing the movement of the layers to wrap-around curved surfaces (arms, legs, torso, etc...)

NOTE: By default, Dynamic Layers are enabled for Decals, but not for the Emission Map, but this can be changed in the settings for those features.

Fixed Layers

Fixed layers apply AudioLink effects directly, without any movement along the length of the hairs:

A close-up of my ear, showing the static layers in action.

Fixed Layers Filtering controls how smoothly the effect fades in/out. Low values will appear to strobe, while high values will fade out gently.

Fixed Layers Tips Strength controls the visibility at the hair tips

Fixed Layers Middle Strength controls the visibility at the hair mid-points

Fixed Layers Root Strength controls the visibility at the hair roots

Fixed Layers Skin Strength controls the visibility at the skin

NOTE: By default, Fixed Layers are enabled for both Decals and the Emission Map, but this can be changed in the settings for those features.

Show Test Colours

Show Test Colours simulates an AudioLink signal for the Dynamic and Fixed layers, which is useful for testing while in the Unity Editor.

NOTE: Each AudioLink feature has its own separate enable, so Show Test Colours won't show anything until you enable at least one feature.

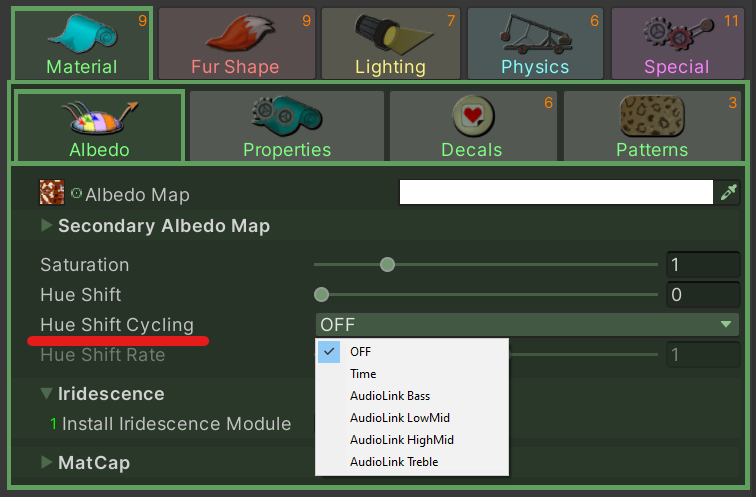

Hue Shift Cycling

AudioLink can control hue shift according to the frequency bands being played:

NOTE: Show Test Colours currently doesn't affect AudioLink Hue Shift Cycling.
